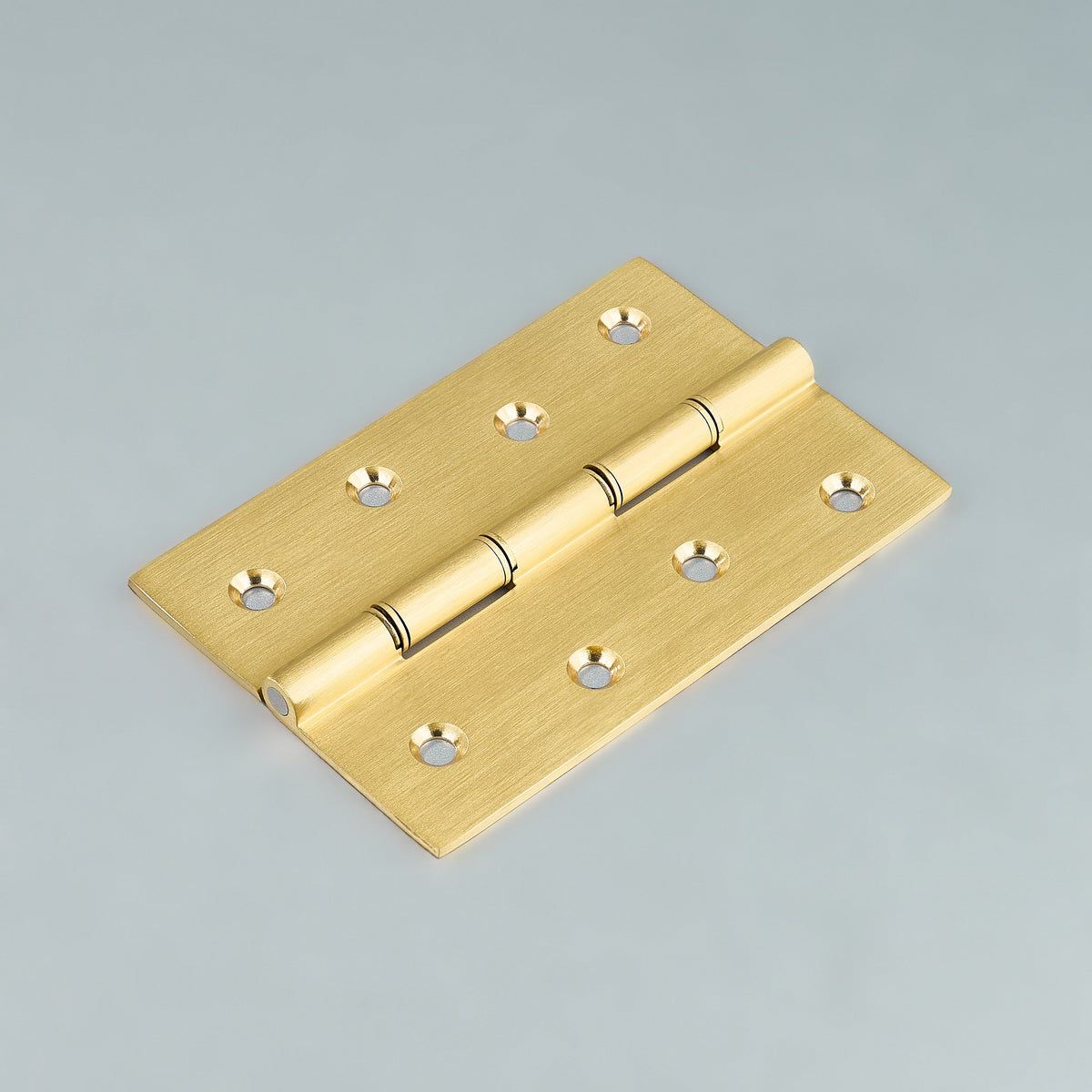

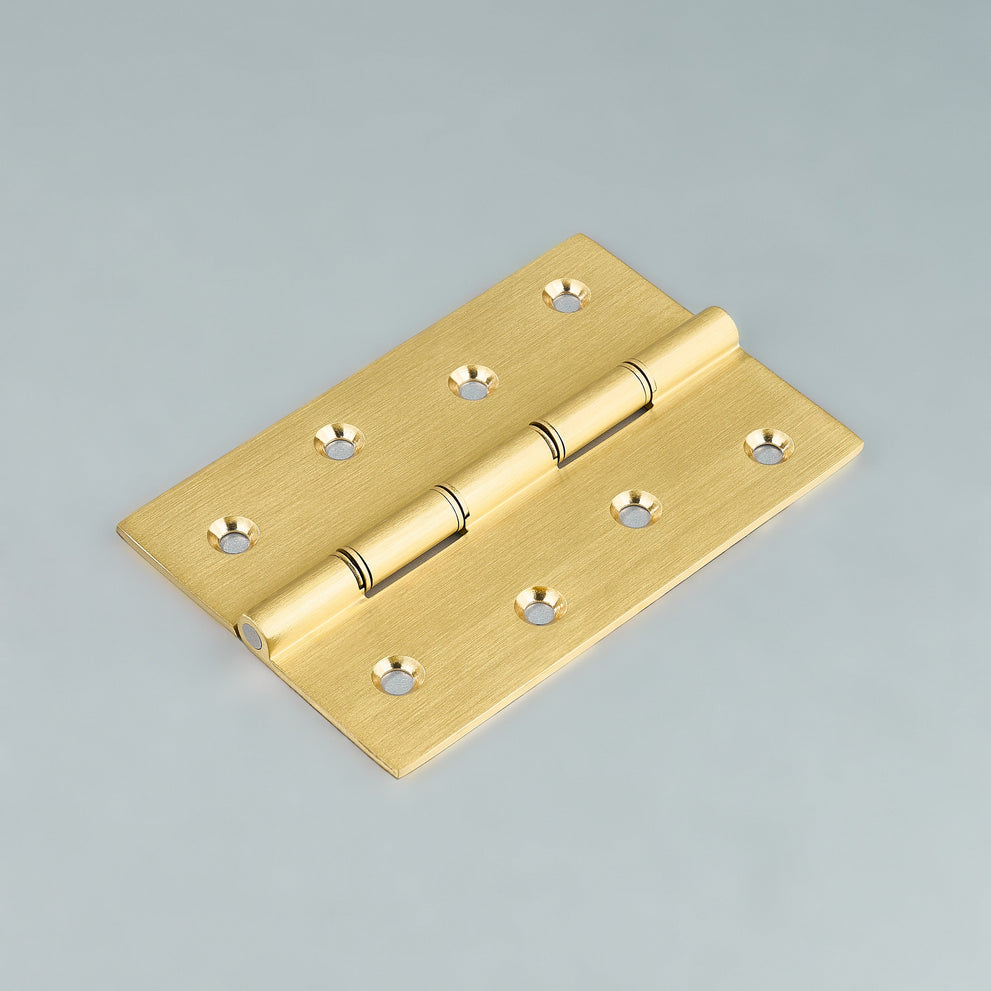

This photograph from the Neptune Washer Cabinet Hinge gallery shows the exposed leaves and washer rings. Check the selected size and mounting requirements against your cabinet.
A cabinet door can have the right color, the right handle and the wrong hinge. The problem usually appears in a very ordinary way: the door catches its neighbor, leaves an uneven gap or cannot open far enough for the drawer inside. Hinge selection begins with those physical relationships, not with the finish on the visible metal.
Several terms overlap because they answer different questions. Inset and overlay describe where the door sits. Butt, concealed cup and pivot describe different constructions. Soft-close describes a closing feature. A hinge can belong to more than one of these categories, which is why a product described simply as an inset hinge still needs a closer look.
Establish the cabinet and door relationship
A face-frame cabinet has a frame across the front of the box. A frameless cabinet uses the box edges as its front reference. The hinge needs a compatible attachment arrangement; a part intended to fasten to a face frame is not automatically interchangeable with one fixed to the inside of a cabinet side.
An inset door sits within the opening, with a working gap around it. An overlay door covers part of the face frame or box edge. Full overlay and partial overlay describe different amounts of coverage. A half-overlay application commonly occurs where two doors share a partition, but the actual overlay dimension still has to come from the selected system.
These relationships determine more than the appearance of the closed cabinet. The door must clear the neighboring front as it starts to turn. Door thickness, edge profile and mounting position can affect that movement. Blum's face-frame hinge range illustrates why manufacturers distinguish application and overlay before specifying a particular hinge.
Butt hinges make their construction visible
A butt hinge has two leaves joined around a pin. Depending on its design and the cabinet construction, the leaves may sit in prepared recesses while the knuckle remains visible at the door edge. The recess, screw positions and clearance belong to that exact hinge, not to a universal cabinet-hinge measurement.
Visible hinges can contribute to the furniture-like quality of an inset cabinet. They also make alignment easy to notice: a row of knuckles placed inconsistently can interrupt otherwise careful joinery. Their appearance deserves attention, but a decorative finish does not establish load capacity, closing action or suitability for a particular door.
Some traditional hinges have little or no built-in adjustment. Correcting a door may therefore involve the fixing, mounting surface or prepared recess rather than turning an adjustment screw. Before replacing one, record its dimensions and how it sits on the door and frame. Matching only the visible barrel is not enough.
Concealed cup hinges are a system of parts
A concealed cup hinge typically connects a bored recess in the door to a mounting arrangement on the cabinet. The hinge arm and mounting plate work together. Their combination determines the door position and available adjustment, so two pieces that clip together are not necessarily the right pair for the application.
Concealed hinges can be specified for inset and overlay doors. Many provide adjustments for alignment, and some include a damping feature, but those capabilities vary by model. They should not be assumed from the appearance of the hinge or from the word European in a listing.
The manufacturer's planning information should establish the cup preparation, fixing method, minimum door thickness, reveal and permissible door size or weight. A hole bored too deeply can damage the face of a thin door. A guessed mounting-plate position can create a door that cannot be brought into alignment within the available adjustment.
Other constructions solve particular problems
Surface-mounted hinges attach without the same leaf recess as a mortised butt hinge, though they still require the correct clearances and fixings. Wrap-around designs use a shaped leaf that follows part of the cabinet or frame profile. That shape is a compatibility detail, not a promise that every wrap-around hinge supports a heavier door.
Demountable hinges make removal possible through a particular connection or prepared slot. Some require a tool to release or secure that connection. They should not be described as universally tool-free, and their preparation may differ substantially from an ordinary screw-mounted hinge.
Pivot and knife hinges place the turning arrangement differently from a conventional side-mounted butt hinge. They can be useful in specific cabinet designs, but their installation depends on accurate preparation and the maker's application limits. They are not a general replacement for any tall or heavy cabinet door.
Reverse-bevel hardware belongs with the door profile it was designed to accommodate. It does not, by itself, turn an ordinary door into a handle-free system. The accessible grip, closing arrangement and clearances must be considered together.
Closing behavior is a separate decision
A self-closing action helps draw a door toward its closed position over a defined part of its travel. A soft-close feature damps movement so the final approach is slower. The two functions are related but different; one label does not guarantee the other, and neither fixes a door rubbing against its neighbor.
Push-to-open systems introduce another set of requirements. The opening device, hinge behavior and door geometry need to be compatible. Removing a handle from an ordinary hinged door does not create that system. When the desired result is a nearly uninterrupted front, the opening method should be planned before the cabinet is made.
A practical replacement record
Before ordering, photograph the installed hinge open and closed, any maker's marking, the mounting plate and the door edge. Record the door thickness, its position relative to the cabinet front, the existing preparation and the movement that needs correcting. These details are much more useful than a photograph of the finish alone.
The Inspire Hardware hinge collection is a starting point for checking available designs. A catalog image can identify the family; the exact product information and installation instructions determine whether it belongs on the cabinet. A door that is unusually heavy, damaged or difficult to support deserves the attention of the cabinetmaker or installer before hardware is changed.
Questions that often cause confusion
Can an adjustable hinge correct every uneven gap?
Adjustment has a limited range. It cannot make an incorrectly sized door fit an opening, restore damaged screw holes or straighten a distorted cabinet. Those causes should be separated before the hinge settings are changed.
Should a noisy hinge always be lubricated?
A noise may come from loose fixings, rubbing surfaces or the mechanism itself. Follow the manufacturer's maintenance instructions; an unspecified lubricant can be unsuitable for a damping mechanism or nearby finish. Finding the cause is more useful than applying a product to every moving part.
Must the visible hinge match the pull?
Exact visual matching is a design preference. Mechanical suitability comes first, followed by a deliberate decision about whether the hinge should blend with the cabinet or relate to the handle. A successful hinge is one whose appearance and operation both make sense in that specific installation.
