Key Takeaways:
- Handle Placement As A Design Element: Understanding and mastering handle measurement transforms hardware from mere functionality to an integral part of your design narrative. It’s not just about access—it’s about flow, proportion, and lasting visual impact.
- Why Center-to-Center Precision Matters: Accurate center-to-center measurement is crucial for seamless hardware installation. It ensures that each pull aligns perfectly, avoiding uneven spacing, re-drilling, or gaps that disrupt the visual rhythm of your cabinetry.
- Tools That Eliminate Guesswork: Using the right tools and techniques prevents common measurement errors. A calibrated ruler, center-finding gauge, or hardware template helps you avoid misalignments and guarantees a clean, professional-grade finish every time.
At Inspire Hardware, we believe that details are everything. We craft each piece with disciplined refinement, where tolerances are tight, finishes are flawless, and form follows long-term function. Our hardware supports architectural integrity and thoughtful living. When every pull, knob, and hinge is designed to perform beautifully in the hand and over time, you notice the difference and rely on it.
The wrong handle measurement can throw off an entire design. Whether upgrading a kitchen, refining a bathroom, or aligning new millwork, measurement matters. Each decision affects both usability and aesthetics, from center-to-center spacing to grip clearance and visual balance. Understanding how to measure properly ensures every handle sits exactly where it should, on center, in proportion, and with confidence built into every line.
In this blog, we will explore how to measure cabinet handle placement with precision, from center-to-center spacing and overall handle length to proper alignment techniques, so your hardware fits visually and functionally seamlessly.
Understanding Standard Handle Sizes
When you look at a cabinet or a door and feel an instant sense of balance, it's rarely an accident. Standard handle sizes have grown out of decades of design evolution, precision, and the pursuit of that visual and tactile harmony.

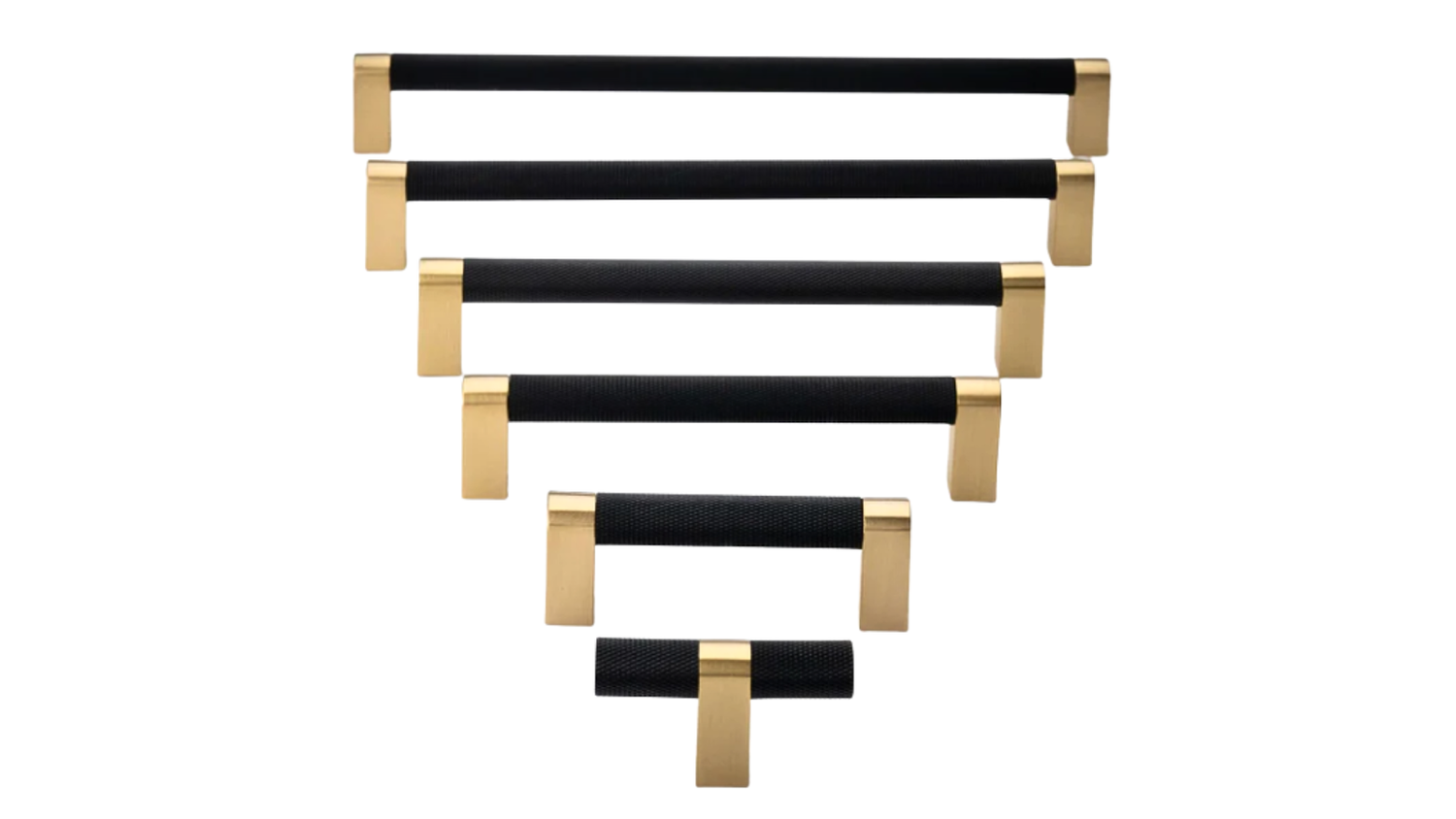

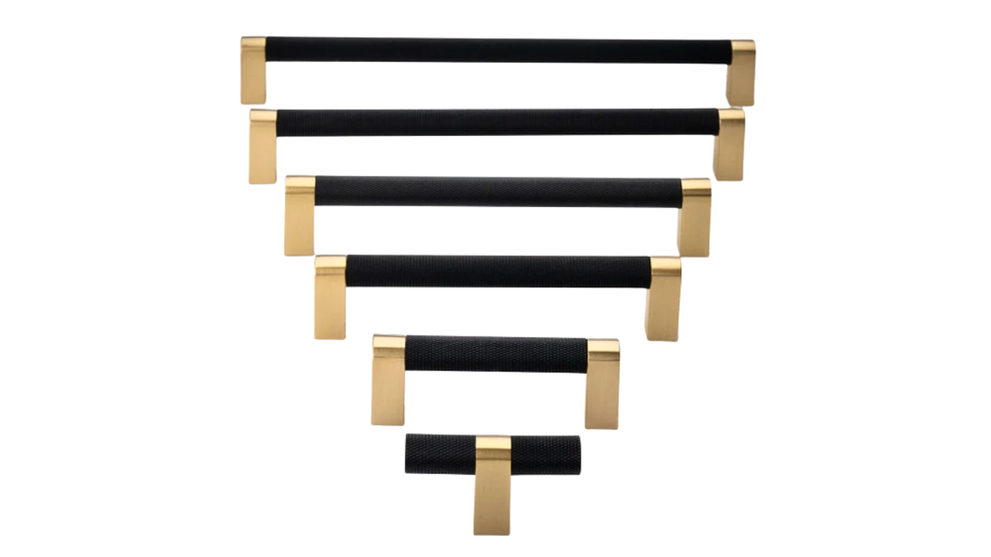

Most Common Handle Spacings
The most commonly selected center-to-center (sometimes called “drill spacing”) measurements are 3 inches (76mm), 3.75 inches (96mm), and 5 inches (128mm), with larger pulls extending out to 8, 10, or even 12 inches for those bold, gallery-worthy pieces.
Size Recommendations For Different Applications
For cabinetry, a 3 to 5-inch handle often fits beautifully on drawers and doors up to 24 inches wide, striking that subtle chord between elegance and ease of grip. Oversized drawers or pantry doors may demand more substantial, long linear pulls for a dramatic statement and a comfortable grasp.
Tactile Feel And Design Integrity
The tactile experience is crucial, too. Standard widths and projection depths aren’t simply numbers on a chart; they’re proportions honed to feel reassuring in the hand and withstand years of everyday use. Contemporary designs may favor streamlined silhouettes with minimal projections, while heritage-inspired handles often feature deeper curves and robust profiles, each calculated to elevate both form and function.
A Foundation For Intentional Design
The best part? Knowing these measurements is the first step in transforming your space. Whether composing a row of cabinet pulls in a chef’s kitchen or specifying hardware for a boutique suite, a thoughtful approach to standard sizes becomes the undercurrent of a seamless, curated design narrative. With that foundation, perfecting cabinet hardware placement becomes far easier, bringing each piece into proper visual alignment for both form and function.
Quick Guide To Overall Length vs Screw Spacing
When selecting handles that make a statement, the subtle art lies in understanding measurements, specifically, the distinction between overall length and screw spacing. Both dimensions influence the installation process and the elegance and harmony of a finished space.
Understanding The Visual Footprint: Overall Length
Overall length refers to the tip-to-tip measurement of a handle or pull. This is the visual footprint: what your eye tracks as it moves across a set of cabinets or draws along the lines of a bespoke wardrobe. A thoughtfully chosen overall length can create rhythm and proportion, echoing architectural details or subtly elongating a run of drawers.
The Function Beneath The Surface: Screw Spacing
Screw spacing, sometimes called center-to-center (C-C), indicates the distance between the center points of the screw holes. This measurement determines the fit for pre-drilled cabinets or doors and is critical for seamless replacement projects. Screw spacing is the silent infrastructure beneath the design, unseen but integral, ensuring handles feel secure and intentional in the hand.
A cabinet hardware templates guide is handy for those managing multiple installations or replacements. It allows for quick, repeatable marking and reduces installation errors when aligning screw points and maintaining symmetry.
Creative Freedom Versus Practical Constraints
When seeking handles for new cabinetry, you can let creativity lead with both dimensions. But for upgrades or restorations, matching the existing screw spacing allows for effortless swaps, no patching or redrilling needed. If you crave drama or want to introduce a touch of the unexpected, select a piece with a generous overall length that extends beyond the screw points, bringing a sculptural lift to the everyday.
Tools You Need For Accurate Counts
Precision in handle measurement begins with your toolkit.
- Use A Precision Tape Measure Or Ruler: Choose a heavy-duty tape measure or rigid ruler with metric and imperial markings. Accuracy at this stage prevents millimeter-sized misalignments that can compromise visual symmetry and require rework later.
- Mark Lightly With A Quality Pencil: Use a sharp, soft-lead pencil for clean, erasable reference points on cabinets or tape. Lines should be visible but removable to preserve the integrity of high-end finishes during final installation.
- Secure With Masking Tape For Testing: Apply low-tack masking tape when testing handle placement or setting up drill templates. It protects surfaces and helps visualize spacing, which is especially useful when working across multiple cabinet styles.
- Incorporate Templates Or Drilling Guides: Templates or cabinet hardware drilling guides help ensure consistent spacing and alignment across a run of cabinets. They are ideal for batch projects or any layout requiring symmetrical, repeated measurements.
- Add A Compact Digital Caliper For Detail Work: Digital calipers are helpful when working with custom, vintage, or mixed hardware styles. They allow fast, ultra-precise internal and external measurements when standard dimensions don’t apply.
- Keep A Small Level Within Reach: A torpedo or pocket level helps confirm vertical and horizontal hardware alignment. Even small deviations can interrupt visual flow, especially on tall doors or in kitchens with continuous runs.
- Use Painter’s Pyramids Or Door Blocks: Support doors on stable painter’s pyramids or scrap blocks during marking and installation. This prevents stress on hinges, protects surfaces, and keeps working angles consistent for accurate measuring.
- Track With A Tally Sheet Or Digital Counter: Use a printed checklist or digital tally app to track completed handles and remaining counts. It’s beneficial on large projects with multiple finish zones, cabinet styles, or door sizes.
- Reference A Guide To Installing Different Types Of Hardware: Different handles, knobs, latches, and pulls have unique requirements depending on their form and function. Keeping a trusted guide to installing different types of hardware nearby ensures you follow manufacturer specs and avoid missteps during layout, drilling, and mounting.
Reading Manufacturer Specs With Confidence
Peering into a manufacturer’s specifications can be daunting; each number, dimension, and term plays a pivotal role in achieving a flawless fit and remarkable aesthetic. You just need to know what to look for.
Understand Overall Length vs. Center-to-Center
Start by examining the overall length or width, which is the tip-to-tip measurement, that defines the full footprint of a pull or handle across your surface. Next, the center-to-center measurement, often abbreviated as CTC, is fundamental. This is the exact distance between the centers of the screw holes and determines compatibility with your cabinetry’s pre-drilled holes. A tenth of an inch here can mean perfect alignment or a frustrating redo, so double-check this detail before moving forward.
To make the selection easier, it helps to ask: Are there universal cabinet pull sizes? While there are industry standards like 3", 96mm, and 128mm CTC, not all cabinets follow the same spacing, so specs matter more than assumptions.
Consider Projection For Comfort
Pay close attention to projection, too. This is how far the hardware extends outward from the mounted surface. Projection influences function and comfort, are you working with deep drawers or slender doors? Will hands slide comfortably beneath the pull, or will larger knobs catch passing sleeves? Context matters.
Finish And Material Impact More Than Style
Material and finish also appear in manufacturer specs, springboarding your selection from simple utility to artistic statement. Solid brass, stainless steel, brushed or polished, each detail impacts durability, touch, and visual harmony within your environment.
Final Checklist Before Placing Your Order
So you’ve found the perfect hardware that completes your vision and promises to improve your space.
Before you click “add to cart,” take a moment to double-check these essential details to ensure your order delivers precisely what you’ve imagined:
- Accurate Measurements: Confirm that you’ve measured center-to-center spacing, overall length, projection, and any clearance requirements for doors or drawers. Precision here will guarantee a flawless fit.
- Finish Coordination: Examine your samples in the surrounding light of your intended space. Cohesion with your fixtures, cabinetry, and overall color palette breathes harmony into the finished design.
- Quantity Calculations: Tally your handles, knobs, and pulls for each cabinet and drawer face, plus a spare or two for future needs, just in case.
- Mounting Information: Double-check existing hole placements or drilling templates, especially if you’re replacing hardware. This prevents extra work or unwanted adjustments.
- Customization Details: Review any bespoke sizing, finish selections, or backplate pairings to ensure every element is tailored to your project’s requirements.
- Installation Considerations: Clarify the type of screws and fastening systems you’ll need, taking the thickness of cabinet or door faces into account.
- Budget Alignment: Make sure your choices align with your project’s scope, without compromising on those premium details that set your work apart.
How to avoid common mistakes installing handles and pulls? This is the perfect time to pause and assess whether you've factored in alignment, door swing direction, and reveal spacing. A common mistake is rushing through installation without testing fit and placement beforehand, leading to misdrilled holes or skewed lines. Confirm using the correct templates and measuring tools to avoid these avoidable errors.
Final Thoughts
Handle measurement is your opportunity to set the tone, balance function, and reveal the artistry that defines your space. At Inspire Hardware, innovation meets tradition, and every detail becomes a testament to taste. Take the time to measure carefully, knowing that every facet, center-to-center distance, projection, overall length, and placement will directly influence the tactile and visual narrative of your cabinetry or doors.
We understand that every home, project, and vision is distinct. That’s why our expert team remains by your side for every question, offering tailored consultations and insights that take the guesswork out of handle measurement.
With Inspire Hardware, every detail is deliberate, your vision made tangible, and your environment is uniquely yours.
Read more:
- The Different Types Of Cabinet Hinges And How They Work
- A Quick Guide to the Most Popular Cabinet Styles
- Perfect Home Office Hardware: Choose with Style
Frequently Asked Questions About Handle Measurement
Does the material of the handle affect measurement?
The material, solid brass, stainless steel, or another medium, does not directly impact your measurement methods. Precision tools work on any surface. However, materials like solid brass (our specialty at Inspire Hardware) often offer crisper edges and finer tolerances, allowing for more accurate and repeatable measurements. Heavier materials may also influence installation requirements, so consider both dimensions and the weight rating of your cabinetry.
What tools do I need to measure a handle?
Your essential measuring toolkit should include a quality metric/imperial ruler or a digital caliper for accuracy. For curved or unusually shaped handles, flexible tailor’s tape can capture arc lengths. Always keep a pencil, notepad, and perhaps a small level at hand—details matter as you translate creativity into precise installations.
How do I measure the diameter of a handle?
If you’re looking at a round knob or a bar-style pull, position your caliper or ruler across the broadest part of the handle’s front face. For non-uniform shapes, measure at the thickest point and record this value. Consistency speaks volumes in finished spaces.
How do I measure a handle for replacement?
First, remove the existing hardware. Record the “center-to-center” measurement, the distance between the center points of the screw holes. Then, note the handle’s total length, projection (how far it stands from the surface), and diameter or width. These dimensions ensure a seamless, professional swap for new installations from our curated brass collections.
What is handle measurement?
Handle measurement refers to the process of capturing key dimensions of cabinet pulls, knobs, or door handles, typically length, diameter, projection, and center-to-center distance. These measurements guarantee perfect alignment, aesthetic balance, and hardware compatibility, embodying the precision and artistry behind truly distinctive spaces.
What is the difference between center-to-center and full-length measurement?
Center-to-center refers to the spacing between the centers of each mounting screw hole—it’s the most important dimension for fitting hardware to pre-drilled cabinetry. Full-length (or overall length) measures the handle’s furthest edges. Both are vital: center-to-center ensures fitment, while full-length impacts visual impact. At Inspire Hardware, we specify both so you can select handles with flawless confidence.
