How to Select Cabinet Hinges That Fit Right

A cabinet door can have the right paint, the right panel detail, and beautifully scaled pulls, then still feel off when it opens awkwardly or sits unevenly. Hinges control that experience. They determine the reveal between doors, how far a door opens, whether it clears an adjacent wall, and how cleanly the cabinetry reads when closed.

Knowing how to select cabinet hinges starts with the cabinet construction, not the finish. Get the fit right first. Then choose a hinge style and finish that support the larger hardware story.

Start With the Cabinet Door Construction

The first specification is the relationship between the door and the cabinet box. Most cabinet hinges are selected around one of three configurations: overlay, inset, or partial inset.

An overlay door rests on the face frame or cabinet side and covers part of it when closed. Full-overlay doors cover nearly all of the cabinet front, creating the crisp, continuous planes associated with modern frameless cabinetry. Partial-overlay doors leave more of the frame visible, a common arrangement in traditional face-frame cabinets.

An inset door sits inside the cabinet opening, flush with the face frame or cabinet front. It creates a tailored, furniture-like look, but it demands precision. Small inconsistencies in the cabinet box, door thickness, or hinge installation show immediately in an inset application.

Partial-inset doors combine these approaches, with part of the door set into the opening and part overlaying the frame. They are less common in contemporary kitchens, but often appear in vintage-inspired or custom cabinetry.

Before ordering, identify whether the cabinet is frameless or face-frame. Frameless cabinets use the cabinet side panels as the mounting surface. Face-frame cabinets have a solid wood frame on the front, and may require face-frame mounting plates or a hinge designed specifically for that construction. A hinge that suits one system may not mount properly on the other.

Measure the Overlay Before You Choose

Overlay is the amount a closed door overlaps the cabinet opening or face frame. It is one of the most consequential measurements in hinge selection.

For an existing cabinet, close the door and mark the edge of the door on the frame with low-tack tape. Open the door and measure from that mark to the edge of the opening. That dimension is the overlay. Measure each door type separately. A single kitchen can include full-overlay doors, half-overlay doors at shared partitions, and specialized hinges at blind corners.

A full-overlay door typically uses a full-overlay hinge, while two doors that share a center partition often require half-overlay hinges so both doors can close without collision. The names sound self-explanatory, but product terminology varies by manufacturer. Confirm the stated overlay capacity and mounting-plate requirements rather than relying on the name alone.

For inset doors, measure the opening and the door carefully, including the intended reveal. A reveal is the controlled gap around a door or drawer front. Many refined cabinet installations use a consistent narrow reveal, but the exact dimension depends on the cabinetmaker, door profile, and desired visual weight. Hinges with three-way adjustment make it possible to refine that reveal after installation.

Do Not Guess the Door Thickness

Door thickness affects cup depth, screw length, clearance, and the hinge model that will work safely. Standard cabinet doors are often 3/4 inch thick, but custom doors may be thicker, especially when made from solid wood, veneered panels, or applied moldings.

A concealed European-style hinge usually requires a 35 mm cup hole drilled into the back of the door. The cup has a specified depth, so there must be enough material remaining at the front face of the door. Thin doors, narrow rails, and detailed profiles can limit the available options. Confirm the manufacturer’s boring pattern, cup depth, and minimum door thickness before drilling.

Choose the Hinge Type That Matches the Design

For most modern kitchens, baths, and built-ins, concealed hinges are the natural choice. When the door is closed, the mechanism is hidden, allowing the cabinetry, finish, and hardware silhouette to take visual priority. They also offer adjustment after installation, which is invaluable when walls are not perfectly plumb or natural wood doors shift slightly with seasonal humidity.

Soft-close concealed hinges add controlled closure, preventing doors from slamming. They are a practical upgrade in high-use kitchens and family baths, and they contribute to the quiet, considered feel expected of premium millwork. For very small or lightweight doors, check whether the soft-close mechanism can be adjusted or whether a lighter-action hinge is recommended.

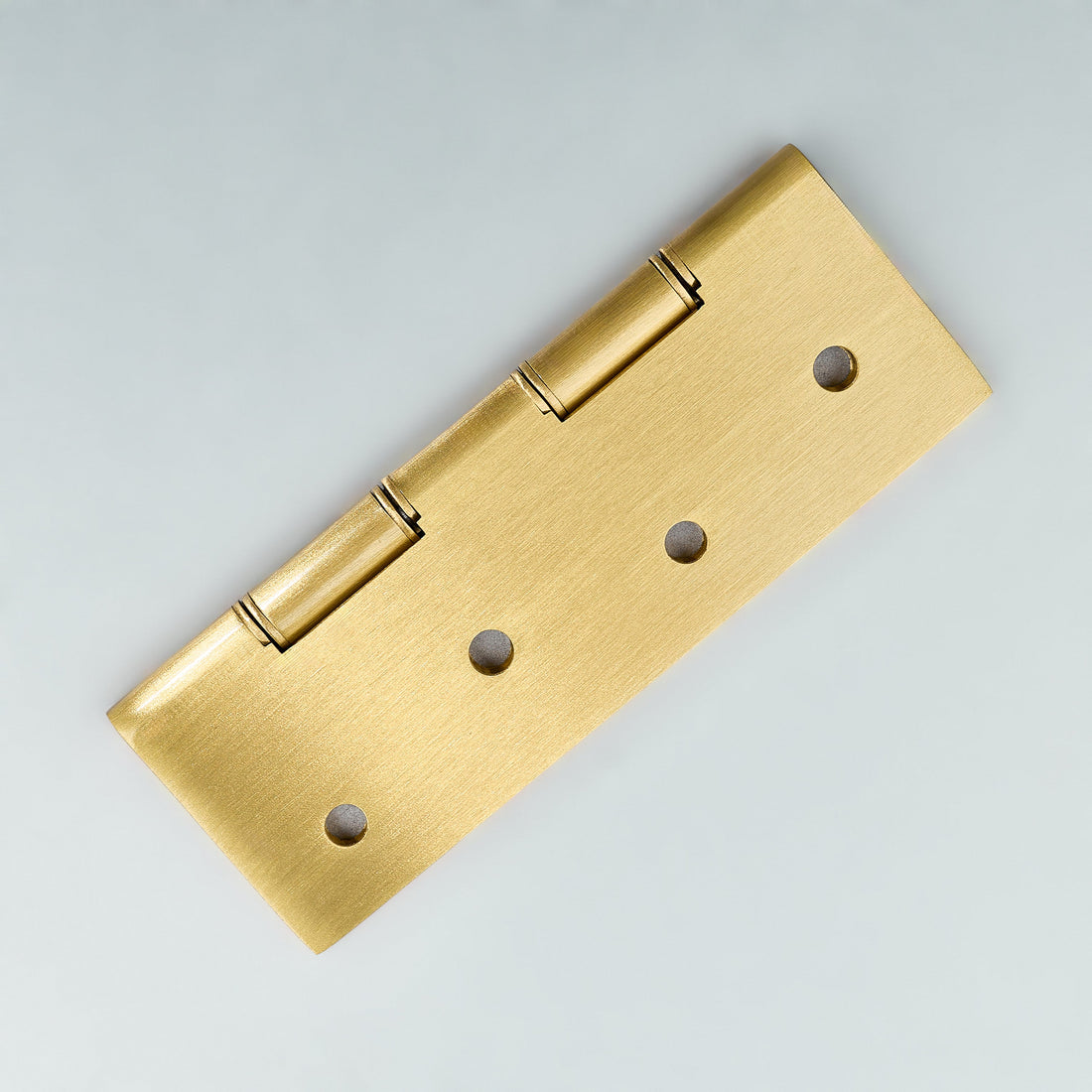

Exposed butt hinges make the hinge itself part of the composition. They work especially well on inset cabinet doors, furniture-style vanities, and projects where a visible brass detail is intentional. The trade-off is that exposed hinges require more exact mortising and alignment. They are less forgiving than concealed hardware, but the result can be exceptional when the cabinetry is built for it.

Specialty applications need specialty hinges. Bi-fold doors, lift-up doors, corner cabinets, pocket doors, and paneled appliance surrounds all have unique movement and clearance demands. Do not force a standard hinge into a nonstandard condition. Specify the function first, then build the decorative hardware plan around it.

Set the Right Opening Angle

A hinge opening angle determines how far a door swings open. A standard concealed hinge may open to roughly 105 degrees to 110 degrees, which works well for most base cabinets, wall cabinets, and vanities.

Wider-angle hinges can be useful when drawers, pull-outs, or interior organizers need full access. They also help with cabinets near perpendicular walls, though more opening is not always better. A door that swings too far can strike an adjacent pull, appliance handle, wall, or another door. In tight kitchens, mock up the swing with cardboard or hold the door open before committing.

Restricted-opening hinges are often the better answer near walls and appliances. They limit travel to protect nearby surfaces and prevent repeated impact. This is a small specification decision that can save a finished cabinet edge from years of chips and dents.

Account for Weight, Size, and Door Count

Large doors need more support. A tall pantry door, a heavy solid-wood vanity door, or a panel-ready appliance door may require additional hinges beyond a standard two-hinge setup. The correct number depends on door height, width, weight, construction, and the hinge manufacturer’s load guidance.

As a practical starting point, small cabinet doors commonly use two hinges. Taller doors often need three or four, and unusually heavy applications may require more. Place hinges consistently, with the top and bottom hinges positioned an appropriate distance from the door edges and additional hinges spaced evenly between them. Consistent placement improves support and keeps the installation visually disciplined.

Do not assume that adding hinges solves every issue. If a door is warped, the cabinet side is weak, or mounting screws are too short for the material, extra hinges cannot create a stable installation. The cabinet construction has to support the hardware.

Coordinate the Finish Without Treating It as an Afterthought

Concealed hinges disappear when the door is closed, so their finish may be less visible than the finish of pulls and knobs. Even so, coordinating them matters on open cabinets, glass-front doors, inset applications, and any installation where the hinge appears during daily use.

Exposed hinges should be selected as deliberately as a statement pull. A warm brass hinge can echo solid brass knobs or a demi-lune pull, bringing a composed line of metal across the cabinet face. Matte black creates sharper contrast. Polished finishes read more formal and reflective, while brushed finishes tend to feel quieter and more architectural.

Exact finish matching can be desirable, especially within one collection. But a considered mixed-metal scheme can work when it is intentional. The key is repetition. If hinges are visible in brass, carry that brass into pulls, knobs, lighting, or plumbing rather than letting it appear as an isolated detail.

Verify the Installation Details Before Ordering

The final check should be specification-based. Confirm the cabinet type, door style, overlay or inset dimension, door thickness, opening angle, mounting plate, cup-hole pattern, and required number of hinges per door. If you are replacing existing concealed hinges, measure the existing cup diameter, cup distance from the door edge, screw-hole spacing, and plate configuration. Similar-looking hinges are not always interchangeable.

For new cabinetry, coordinate early with the cabinetmaker or installer. They need to know whether doors will use concealed or exposed hinges before boring, mortising, and finishing begin. This is particularly critical for inset doors, where hinge choice and reveal are inseparable.

Install one door as a test before completing the entire run. Check the reveal, closing action, swing clearance, and alignment with adjacent pulls. Then use the hinge adjustments to fine-tune side-to-side position, depth, and height. A few minutes spent dialing in the first door establishes the standard for every cabinet that follows.

The best hinge selection is rarely the most decorative one. It is the one that lets a cabinet door close with a precise reveal, open without interruption, and support the hardware you chose to be seen.
