What Is Center-to-Center Measurement on Cabinet Hardware?
The rear view of the Sunbeam cabinet pull makes its two mounting posts visible. Center-to-center measures between the fixing centers, rather than across the full grip.
Center-to-center measurement is the distance from the center of one mounting hole to the center of another. On a conventional two-point cabinet pull, it tells you where the two fixings belong. It does not describe the full length of the handle.
That distinction is easy to overlook when a product photograph gives the whole piece more attention than its attachment points. For a replacement, however, the mounting centers are often the first dimension that determines which options are workable.
Find the fixing centers on the actual piece
The rear view of the Sunbeam pull above makes its two mounting posts visible. The relevant measurement runs between the centers of the fixing locations in those posts, rather than between the ends of the grip.
On an installed pull, the screws may be accessible from the back of the door or drawer front. Their centers can help establish the spacing. Removing the pull, where practical, can make both the mounting points and the cabinet holes easier to inspect.
Use the actual product drawing when available. If a design has an unusual fixing arrangement or more than two points, follow that drawing rather than assuming a conventional two-hole layout.
Measure straight between the centers

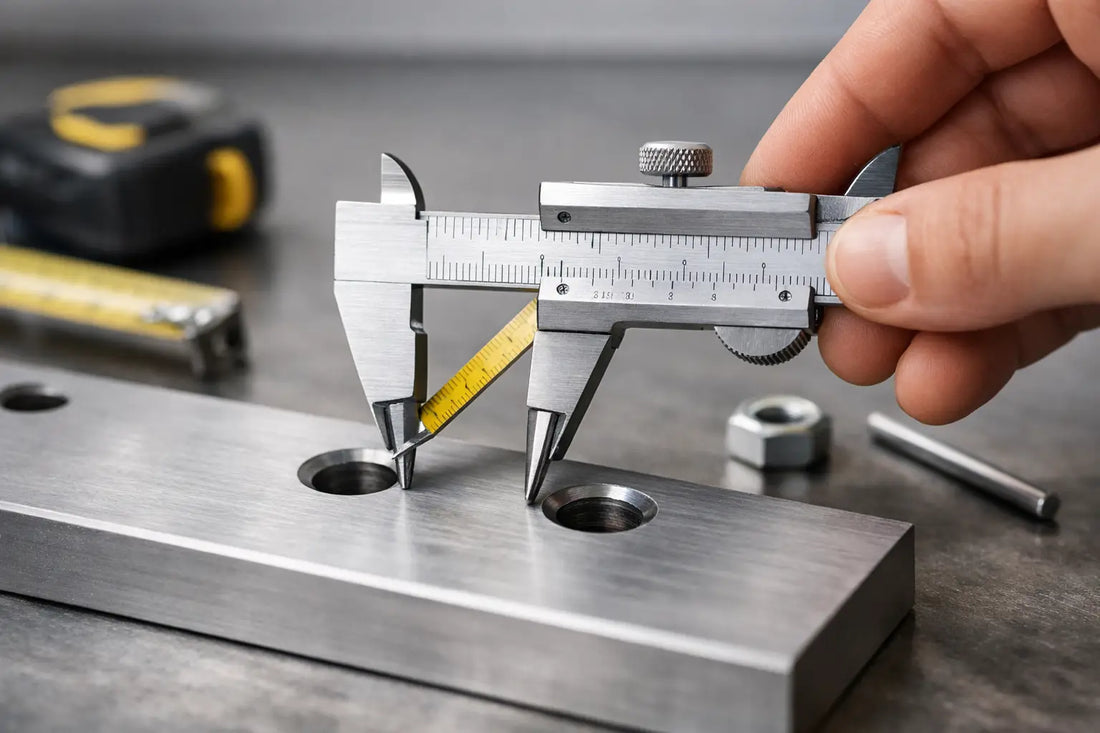

Use a ruler or measuring tool with enough resolution to identify the spacing accurately. Align it with the two centers and keep the measurement straight. Measuring diagonally or from an uncertain reference edge can introduce an error.
If only the cabinet holes remain, locate the center of each hole rather than measuring the gap between their nearest edges. The gap excludes the hole radii and is not the same dimension.
Measure again to confirm the result. If the holes are damaged or the centers are difficult to establish, ask the installer to check them. Do not turn an uncertain reading into an exact product specification by rounding it to a familiar size.
Keep the units with the number
Write the unit every time the dimension is recorded. A bare number passed between a shopping list, drawing and installer can easily lose its meaning.
For example, five inches equals 127 millimeters. A pull specified at 128 millimeters is therefore not exactly the same spacing. The small numerical difference is a reason to check the actual mounting requirement, not a reason to assume the two labels are interchangeable.
A product may show both metric and imperial descriptions, sometimes with a rounded display value. Use its dimensioned information and confirm any ambiguity with the supplier before ordering or drilling.
Overall length answers a different question
The full end-to-end dimension tells you how much visible space the pull occupies. Its ends may extend beyond the mounting posts, and different designs can extend by different amounts.
As a hypothetical example, a pull could have five-inch mounting centers and a seven-inch overall length. Another pull with the same centers could have a shorter overall outline. Both could share a hole pattern while looking quite different on the front.
Width, projection and grip clearance add further differences. Matching centers establishes only part of the fit; it does not prove that the replacement will feel or look like the old piece.
Check the old footprint during replacement
Remove a representative pull and inspect the cabinet surface around its mounting bases. There may be an indentation, wear mark or older finish underneath. A new base with a different shape can expose that area.
If the new pull does not match the existing centers, the project may require filling and redrilling or a specifically compatible alternative. Discuss the surface consequences before choosing the hardware.
A backplate can sometimes conceal a particular old hole or mark, but only if its footprint and attachment suit the actual arrangement. It does not automatically adapt the spacing, and a grip passing above a hole may leave that hole visible.
New cabinetry gives you a different starting point
When holes have not yet been drilled, you can compare the hardware's proportions and grip before selecting the mounting pattern. That freedom still needs a clear final specification.
Use outlines to compare the visible pieces on representative fronts. Once the product and size are chosen, give the installer the exact mounting centers and agreed placement from defined reference edges.
The kitchen remodel hardware checklist helps connect that decision with quantities, finish selections and the installation schedule. The final drilling plan should follow the selected hardware, not a remembered nominal size.
Single-point knobs use other sizing information
A conventional single-point knob has no pair of fixing centers to measure. Its face dimensions, base footprint, projection and mounting details are more relevant to the selection.
Our guide to cabinet knobs that fit explains those relationships. Check the actual product, as the category name alone should not substitute for its mounting information.
If replacing a knob with a two-point pull, plan both new centers on the front. Reusing a centered knob hole as one endpoint shifts the pull's midpoint, which may not be the layout you want.
Appliance handles need more than the right centers
The same measurement concept can apply to an appliance pull, but matching spacing does not establish appliance suitability. The model, panel construction and fixing requirements need their own verification.
A large cabinet pull should not be substituted merely because the holes line up. Record the appropriate product category and the exact appliance requirements alongside the dimensions.
Keep a small record that someone else can check
For each hardware group, retain the product, exact size, units, overall dimensions, finish and intended location. Include the drawing or product specification used to establish the centers.
Center-to-center is a simple measurement. Its value comes from carrying that exact information consistently from the cabinet to the order and then to the installation.
