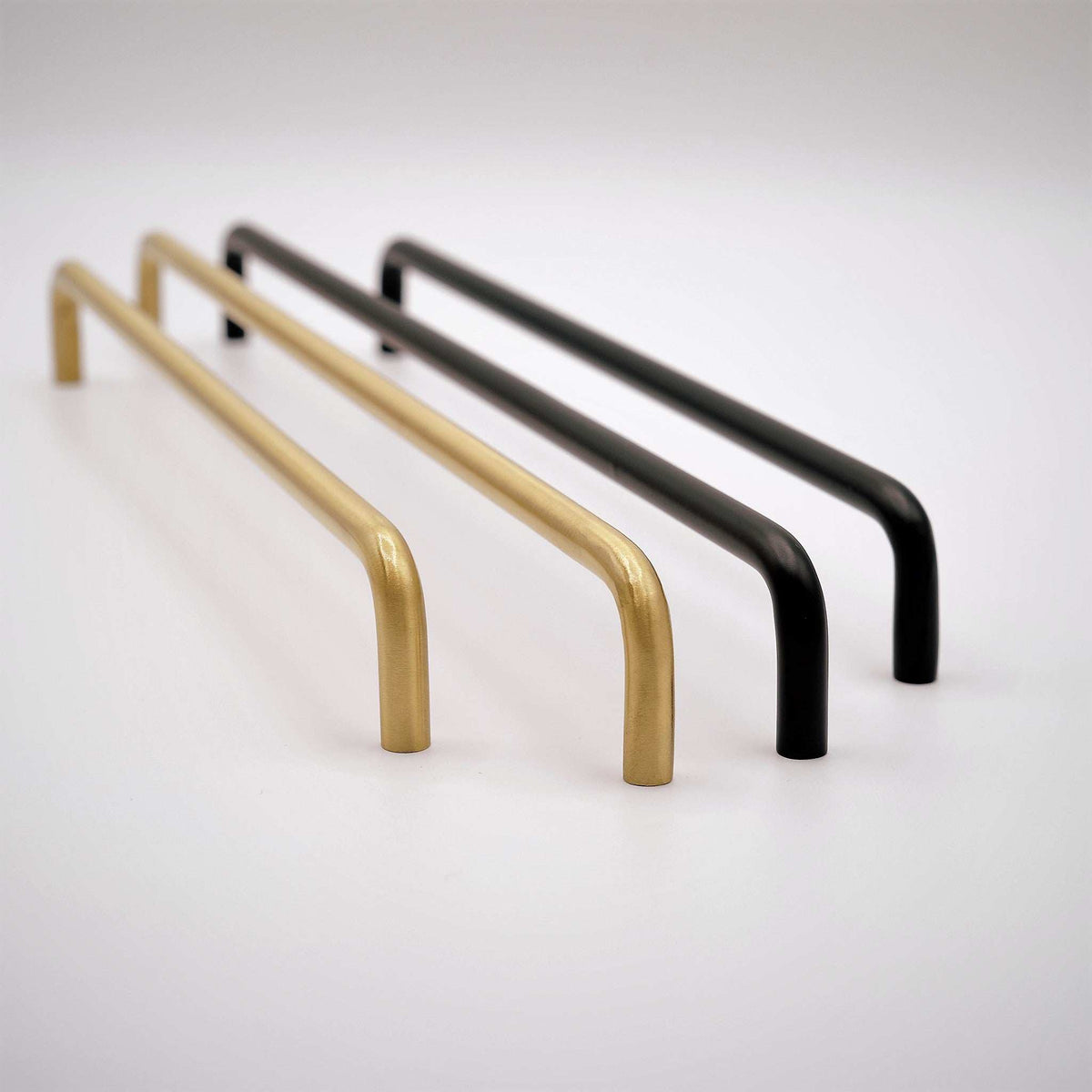

Different lengths of Arch, Solid Brass Wire Cabinet Pulls make the distinction between overall size and mounting-center measurements easier to see.
Two cabinet pulls can look almost identical in a photograph and need different holes. Two others can fit the same holes yet look quite different on the drawer. The useful measurements separate those questions: will this fit, how much of the front will it occupy, and will it feel comfortable in use?
Start with the actual cabinet and the exact hardware variant you intend to order. A collection name or a rounded size in a product title is not enough to establish the mounting pattern.
Center-to-center spacing determines the fixing positions
Center-to-center, sometimes written C-C or CTC, is the straight-line distance between the centers of the mounting holes. On a conventional two-post cabinet pull, this is the dimension that must agree with existing holes if you want a straightforward replacement.
Remove the old pull carefully so its base does not obscure the hole centers. Measure between those centers with a rigid rule or an appropriate measuring tool. Keep the rule square to the line between them. If the holes are damaged or enlarged, establish their intended positions rather than measuring random edges of the damage.
Record the measurement without rounding it to a convenient shopping category. Three inches is 76.2 mm; five inches is 127 mm. A 128 mm pull is not exactly a five-inch pull. Likewise, 96 mm should not automatically be treated as an exact three-and-three-quarter-inch drilling pattern. Verify the manufacturer's dimensions in the stated units.
Overall length is the visible footprint
Overall length measures the full extent of the pull, usually from one end to the other. The ends may project beyond the mounting posts, so overall length can be substantially greater than the center-to-center spacing. Some shapes have very little overhang; others use it deliberately as part of the design.
For a curved or sculptural pull, measure the straight overall envelope shown in its drawing. Do not substitute the distance traced along a curved surface with a flexible tape. Arc length will not tell you how much horizontal space the installed pull occupies.
Cut a paper outline of the full footprint and hold it against the cabinet front. This shows scale more clearly than a line representing the screw holes alone. Try it on both the smallest and largest relevant fronts before assuming one length will work throughout the room.
Projection and finger clearance are different
Projection is how far the hardware extends from the mounting surface. It helps you judge whether a door can pass an adjacent panel, whether a drawer can open near another pull and whether the hardware will feel intrusive in a narrow circulation area.
The usable gap beneath a pull is not necessarily the full projection. The thickness and shape of the grip occupy some of that distance. A high-projection pull with a thick grip can leave less room for fingers than its overall dimension suggests.
If possible, hold a sample in its intended orientation. Check whether your hand enters easily and whether you can pull comfortably without catching knuckles on the cabinet. A nominally correct dimension is not a substitute for this simple use test.
Knobs and less conventional pulls need their own measurements
For a round knob, record the head diameter, base diameter and projection. The base may need to cover an existing mark, while the head must clear nearby trim and adjoining hardware. A one-hole fixing does not make every knob equally suitable for every door.
For an irregular shape, note its maximum width and height as well as its mounting details. An edge pull may mount through a rear flange and need clearance at the cabinet edge. Recessed hardware requires preparation beyond ordinary through-holes. Use the actual drawing for each design rather than translating everything into a standard two-hole pull layout.
Door handles, appliance pulls and cabinet pulls also have different intended applications. Shared dimensions or a matching finish do not establish that one can replace another. Confirm the use and fastening system as well as the size.
Measure the material the screws will pass through
Cabinet fronts and drawer assemblies vary in thickness. A drawer fixing may pass through a decorative front and a separate drawer box, or use another construction entirely. Measure the actual fixing path at the installation location.
The fastener must have the correct thread, length and engagement for the hardware. A screw that is too short may not secure the pull; one that bottoms out can feel tight while leaving it loose. Do not force an incompatible screw or assume that all supplied screws fit every cabinet assembly.
If the installation needs a different fastener length, confirm the appropriate specification with the hardware supplier or installer. Keep that information alongside the dimensions so it is not rediscovered after the entire order arrives.
Turn measurements into a repeatable layout
Choose a consistent reference edge for positioning. Mark a drawer's center from its actual front, and establish the intended vertical position separately. On doors, decide how the hardware relates to the stile and rail rather than copying a measurement from an unrelated cabinet style.
A suitable jig can repeat a verified layout, but it can also repeat a mistake very efficiently. Check its settings against the physical hardware and try the arrangement on scrap material before drilling finished fronts. Confirm mirrored doors independently so the reference edge is not accidentally reversed.
Use a hardware schedule to connect each cabinet location with its selected product, variant, quantity, mounting centers and placement. Count handles by the actual fronts and intended arrangement. One wide drawer with two pulls is two pieces, even though it is one cabinet location.
A final check before ordering
Compare the measured spacing with the exact variant's specification. Then check overall footprint, projection, finger clearance, base coverage, cabinet thickness and full opening movement. Review the finish in the room's light rather than relying on a small screen image.
For replacements, trial one piece on a representative cabinet before ordering a complete set where practical. For new cabinetry, coordinate hardware selection with the person preparing the fronts. That conversation is much easier before the holes exist.
Is there a universal cabinet handle size?
Common mounting spacings can make shopping easier, but they do not make all pulls interchangeable. Match the actual dimensions and installation requirements.
Does solid brass change the way you measure?
The reference points remain the same regardless of material. Brass alone does not guarantee tighter tolerances or make an approximate measurement acceptable.
Can a longer pull use my existing holes?
Possibly, if its center-to-center spacing matches and the rest of the installation is compatible. Compare the drawing: greater overall length does not always mean greater mounting spacing.
