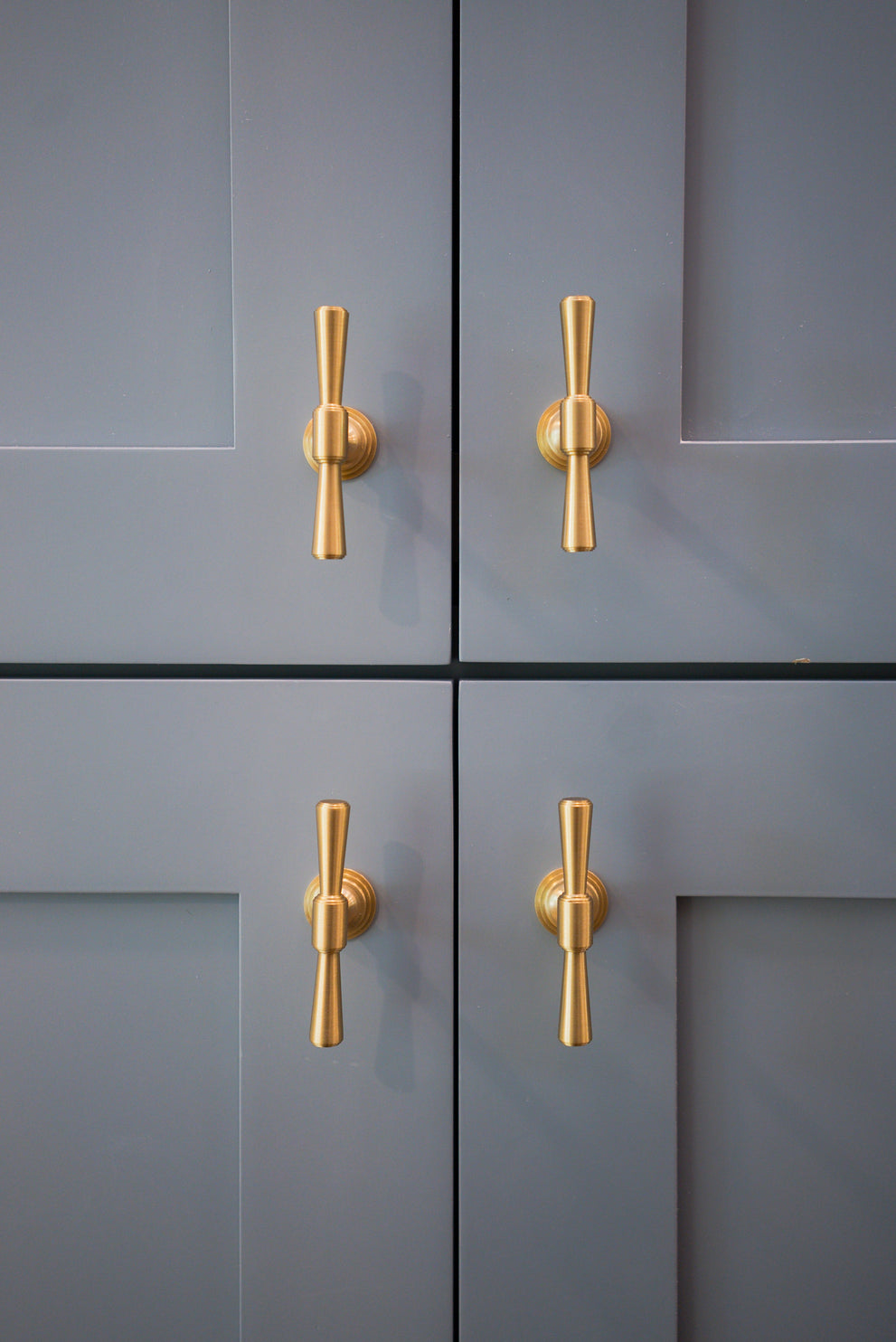

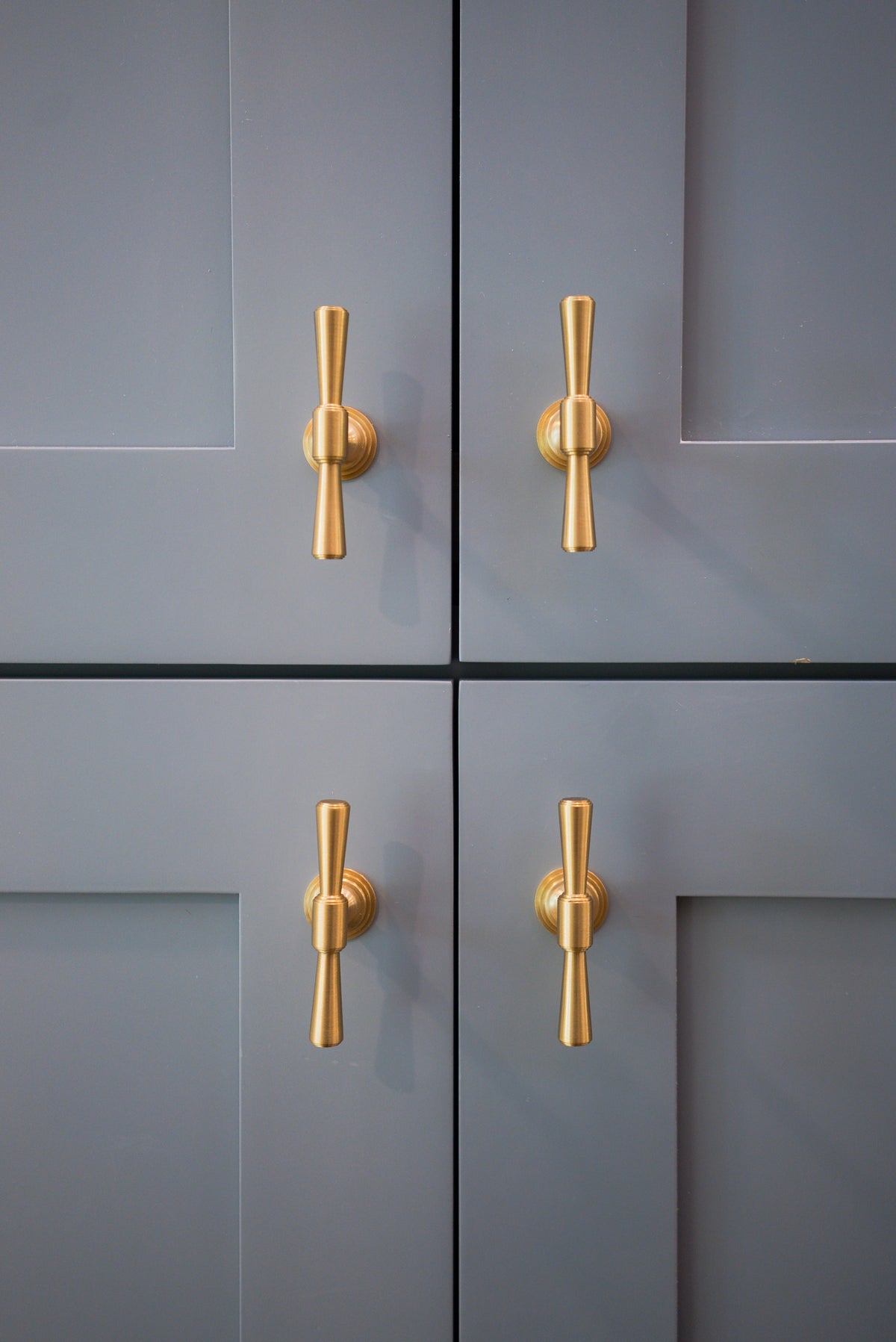

A finished set of cabinet doors fitted with Tuxedo knobs. The guide below concerns hinge installation; this photograph shows the completed cabinet fronts, not the hidden hinge mechanism.
A cabinet door can look almost right and still be frustrating every time you use it. A narrow gap at the top, a corner that brushes its neighbor or a hinge that binds are small details with very noticeable consequences. Good installation starts with understanding the door and cabinet together.
There is no single drilling pattern for cabinet hinges. A concealed cup hinge, an exposed butt hinge and a surface-mounted hinge can require quite different preparation. The steps below explain the sequence and decisions; the exact hinge instructions supply the dimensions.
Match the hinge to the cabinet construction
First establish whether the cabinet has a face frame or a frameless box. Then identify whether the door sits inside the opening, partly overlaps it or covers most of its edge. These are application details, not decorative preferences, and they determine which hinge arrangements will fit.
For an overlay door, measure the actual overlap required by the cabinet design. For an inset door, establish the planned gaps around all four edges. Door thickness, size, weight and opening clearance also matter. The required number and position of hinges come from the hinge and cabinet specifications, not a universal rule based on door height alone.
If you are replacing hardware, photograph the existing hinge and mounting arrangement before removal. Compare the complete specification, including mounting plates where applicable. Two hinges with similar arms may still create different overlays or opening paths.
Understand the installation method you are buying
A concealed European-style hinge commonly has a cup recessed into the back of the door and an arm that meets a mounting plate. Cup diameter, drilling distance from the edge, bore depth and fixing pattern must all match the selected system. A familiar-looking cup size does not make the rest of the measurements interchangeable.
A butt hinge uses leaves joined around a pin. Depending on its design and application, the leaves may require recesses in the door and cabinet. Do not use concealed-hinge drilling instructions for an exposed butt hinge or assume that every hinge provides screw-operated adjustment in three directions.
Manufacturer guidance is the starting point. For example, Blum publishes assembly information for its CLIP top BLUMOTION system. That information applies to the specified system; it is not a drilling template for unrelated hardware.
Gather the instructions, tools and a stable support
Have the actual hinges, specified screws, a clear drawing, an accurate rule or square, appropriate marking tools and the correct drilling or recessing equipment ready before starting. Use a jig designed for the hardware where the installation calls for one. Check that its settings agree with the manufacturer's drawing.
Support the door on a stable, protected work surface. A helper or suitable support is especially useful when hanging a large door; its weight should not pull against a partly fastened hinge. Use the tool manufacturer's safety instructions and protect finished surfaces from clamps and debris.
If the work requires new cup bores or mortises and you do not have appropriate equipment or experience, a cabinetmaker can prepare them accurately. There is little benefit in saving an installation charge by gambling on an irreplaceable finished door.
Mark from consistent reference edges
Label the door's top, bottom and hinge side on a removable method appropriate to the finish. Establish each hinge position from the same reference edge. Confirm that shelves, internal drawers and neighboring hardware will not interfere with the hinge arm or its fasteners.
Check mirrored doors separately. Reversing a jig without confirming its reference edge can create a neatly drilled pattern on the wrong side. It is worth setting both doors in their intended orientation before committing to marks.
Use scrap material of the relevant thickness for a trial where possible. Confirm the jig, bit and positive depth control before touching the finished component. A test hole should demonstrate the required fit without breaking through the face or leaving too little material beneath the recess.
Prepare the fixing points for the actual hinge
Follow the specified boring, pilot-hole and fastening details. Screw dimensions and pilot requirements depend on the hinge and substrate; solid wood, particleboard and other cabinet materials do not behave identically. Do not substitute screws simply because their heads look similar.
Clear drilling debris before seating the hardware. A hinge or mounting plate should meet its intended surface correctly, without being pulled into position by excessive screw force. A rocking plate, damaged hole or distorted leaf needs attention before the door is loaded onto it.
For a mortised hinge, depth and alignment matter as much as the outline. A recess that is too deep or uneven changes how the door sits. Avoid compensating for an inaccurate cut by tightening harder.
Hang one door and assess the whole opening
Attach the components in the order specified for the hinge, keeping the door supported until the fixings are secure. Some systems clip together; others do not. Check the engagement method rather than assuming that a click means every part is correctly seated.
Close the door slowly. Look at the surrounding gaps, the relationship to adjacent fronts and the clearance along its full swing. Open internal drawers and nearby doors as well. A door can sit beautifully when closed and still collide with another component when opened.
Where adjustment is provided, identify which screw controls each movement from the instructions. Make small changes, then reassess. Randomly turning several screws at once makes it difficult to understand whether the door needs height, depth or sideways correction.
Finish only after the trial works
Once the first installation is correct, use its verified measurements to guide the remaining equivalent doors. Recheck differences in size or construction instead of repeating the same hinge count and position everywhere. Consistency comes from a controlled process, not from assuming every opening is identical.
Check that each door moves freely, reaches its intended open position and closes without rubbing. Soft-close performance, where provided, depends on the particular hinge system and door. Do not add lubricant or cleaners to dampers or mechanisms unless the manufacturer recommends them.
Should all cabinet hinges be installed the same distance from the ends?
No single end distance suits every door and hinge. Follow the specified layout, including additional hinges where required, and check for internal obstructions before marking.
Can hinge adjustment fix a cabinet that is out of square?
Adjustment can accommodate the limited range designed into the hinge. It cannot necessarily correct a distorted cabinet, warped door or unsuitable hardware. Identify the underlying problem before using up the available adjustment.
Can you reuse the old screw holes?
Only when the replacement is compatible and the substrate still provides the required fixing. Damaged or mismatched holes need an appropriate repair or installation method, not a larger screw chosen by guesswork.
