Cabinet Hardware Placement for Drawers: Find the Right Reference Lines

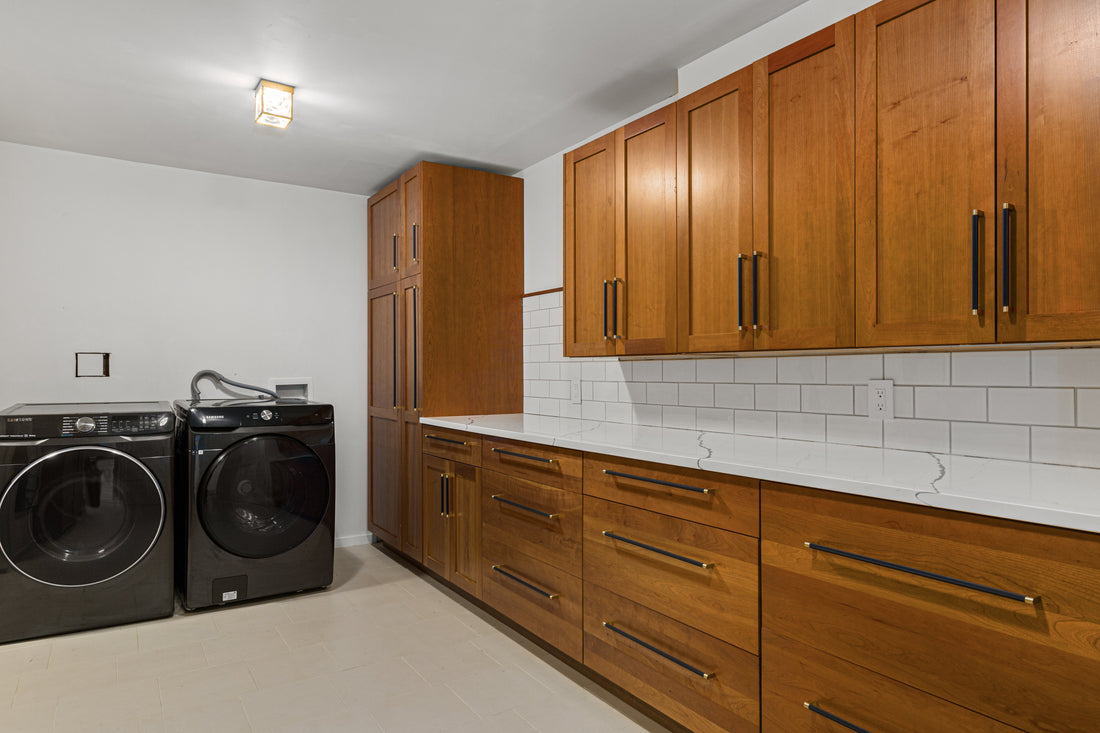

Horizontal Bold cabinet pulls align across the drawer fronts in this storage run, while the doors use vertical grips. Establish each position on the actual cabinet before drilling.
It is easy to center a pull on one drawer and still end up with a drawer bank that feels unsettled. Different front heights, rails and neighboring doors create several possible reference lines. Placement works best when you decide which lines should connect before marking any holes.
Begin with the drawer front as a whole, then consider its construction and the natural approach of your hand. These three views help you choose a position that is coherent, suitable for fixing and comfortable to use.
Choose the size and position together
A slim pull and a broad sculptural one can feel very different in the same location. Make the placement decision using the actual overall outline, not just two dots for screw holes. The full footprint tells you how much space the piece occupies on the front.
Mounting centers answer a separate question: where the fixings belong. Our guide to cabinet pull sizes helps distinguish that measurement from overall length. On replacements, confirm the existing spacing before changing the layout.
Check projection and usable finger space as well. A visually balanced position is less successful if your hand is crowded against a rail or the pull approaches neighboring hardware when the drawer opens.
Use horizontal centering as a starting point
For a single pull, centering it across the actual drawer front is often a clear starting arrangement. Measure the front rather than the cabinet opening behind it, because reveals and construction can make those reference points differ.
On an asymmetric design, distinguish the visual center of the hardware from the midpoint between its fixing holes. Use the product drawing to establish the correct positions. A symmetric hole pattern is not guaranteed by the appearance of a sculptural grip.
Stand back to see the whole bank. The relationship between pulls should feel deliberate across adjacent drawer widths, even if the lengths change. Avoid creating small, unexplained shifts that make equivalent fronts look inconsistently installed.
Decide vertical placement from the front and the reach
On a shallow slab drawer, the vertical midpoint may look and feel appropriate. On a deep lower drawer, a higher position can be easier to reach from standing. These are options to test, not universal dimensions.
Try the proposed position at the actual installed height. Reach for it naturally rather than bending toward a sample on a worktable. Think about the people who will use the drawer and what they will be doing when they open it.
For several stacked drawers, compare a repeated distance from the top edge with centering on each front. Either can make sense depending on the proportions. The useful question is which arrangement remains coherent while giving each drawer a practical point of contact.
Respect rails, panels and fixing material
A five-piece drawer front contains structural relationships that a slab does not. The upper rail may offer an appealing reference line, but its dimensions and the actual fixing path still need to suit the hardware. Do not assume that every rail can accept any pull.
Likewise, a recessed or floating center panel should not be treated as a solid mounting surface without the cabinet maker's guidance. Confirm what lies behind the proposed holes and how the fasteners will pass through the drawer assembly.
On replacement work, inspect the area beneath old hardware. A new location can expose marks or leave holes that are difficult to conceal. Placement freedom may be limited by the existing finish as well as the old centers.
Consider one pull and two pulls on wide drawers
A single centered pull can keep the arrangement simple. Two pulls can create a different rhythm and may suit a broad front, but they also change how people take hold of the drawer. Decide with the cabinet's operation in mind, not simply because it exceeds an arbitrary width.
If you are considering a pair, mark both complete outlines symmetrically and test their reach. Think about whether users will naturally use both hands or pull from one side. Follow the cabinet maker's guidance for the drawer rather than assuming two grips automatically improve its operation.
A longer pull does not correct a stiff slide or an overloaded drawer. Resolve mechanical problems separately so the hardware selection is based on an opening that works as intended.
Treat edge pulls as a different installation
Edge pulls locate the grip at the front's edge and usually involve a different fixing arrangement from a face-mounted bar. Their flange, projection and required gap must be checked against the cabinet construction.
Confirm that the pull clears the countertop, neighboring fronts and any drawer above. Test finger access with the drawer closed. A narrow line in an elevation can conceal an awkward grip if the surrounding clearance was not considered.
Repeat the intended relationship to the edge consistently across equivalent fronts. Use the actual product instructions for preparation, rather than translating the face-mounted pull's hole pattern to another surface.
Mock up the complete elevation
Use full-size paper outlines or appropriately supported samples to compare positions. If tape is used, confirm that it is safe for the finish; newly applied coatings need particular care. Do not rely on tape to hold heavy hardware securely or use a taped sample as a functioning handle.
View the arrangement from the room entrance and normal working positions. Open adjacent drawers and doors to assess potential collisions. Include tall doors and appliance panels in the visual review, while keeping their hardware specifications separate.
Once you choose the layout, record its dimensions from clear reference edges. A drawing or schedule makes the decision repeatable and prevents the installer from having to infer it from a photograph.
Verify before drilling the full set
A suitable jig or template can reproduce an approved layout efficiently. Our guide to cabinet hardware templates explains the role of that preparation. Check the settings against the actual hardware and make a trial before committing to finished fronts.
Install and test one representative drawer, then review the whole arrangement again. If a different drawer height or construction needs another position, document it explicitly. Repetition is useful when it follows a decision that has already been tested.
The finished placement should make sense at three distances: across the room, close to the cabinet and in your hand. When those agree, the hardware feels like part of the drawer rather than something attached after the rest of the design was finished.
